PS2 Decompilation Pt. 1

Welcome!

In this series of tutorials, we will be going over how to reverse engineer and decompile a PS2 binary back to its equivalent C or C++ code in a series of high-level and in-depth tutorials.

This first tutorial will go over how to source the PS2 executable from an ISO rip and how to identify the compiler used in a PS2 binary.

A list of PS2 executables with debug symbols not stripped (present in .STABS section) can be found here.

Ripping PS2 executable

Most RIPs of PS2 Games come in the ISO format, though other formats such as CDVD, IMG, CSO, ZSO, and GZ images exist.

This tutorial will only consider the ISO format though other formats can still be used.

You can mount the ISO file as a drive without any special tools. The SYSTEM.CNF file tells the PS2 what executable to execute when loading the disk. An example SYSTEM.CNF file can be found below

BOOT2 = cdrom0:\SLUS00000.123;1
VER = 1.00
VMODE = NTSC # can also be PAL

As you can see, the executable above is called SLUS00000.123. Some PS2 executables do not come with the ELF extension but are still valid ELF files.

Running file on the executable should output the following:

SLUS00000.123: ELF 32-bit LSB executable, MIPS, MIPS-III version 1 (SYSV), statically linked, not stripped

Copy this executable to a working folder, the assets and the like will not be necessary for this portion of the decompilation stage.

Identify the compiler

Most PS2 binaries are compiled with Sony’s proprietary GCC fork or with Metrowerks CodeWarrior (MWCC).

The easy method of identifying which compiler is used is to simply use Detect-It-Easy (DIE) which is an open source file identifier which has signatures for detecting OS/compiler/packers from an executable.

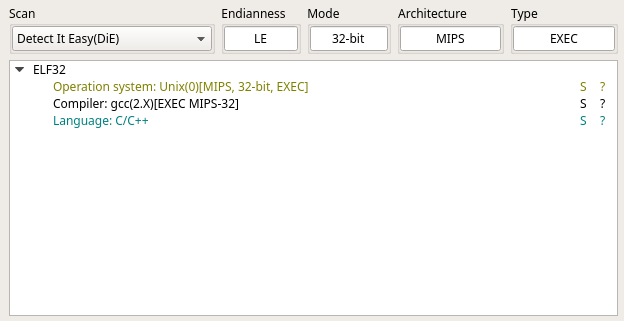

Dropping the executable into DIE should yield a similar result for GCC-compiled binaries:

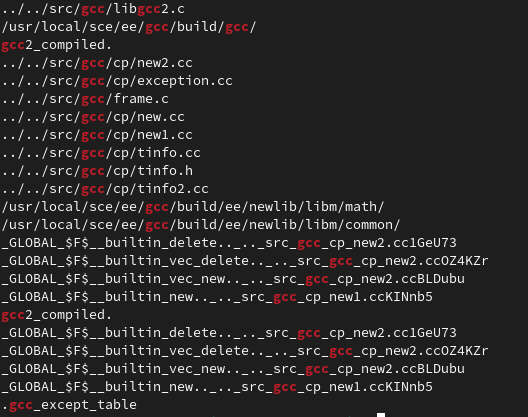

An alternative method is to pipe the output of strings from the executable into grep with "gcc" as the keyword which can be done with the following command: strings SLUS_00000.123 | grep "gcc"

For MWCC-compiled binaries, the process unfortunately isn’t as straight-forward as dropping the executable into DIE.

DIE will still return GCC as the compiler used even if MWCC was used, so the above output may not be correct for MWCC binaries.

If the .comment section was not stripped from the binary, you can simply dump the .comment section and check for the string: MW CodeWarrior which can be found at the beginning of the .comment section

Installing Ghidra

You can download the latest version of Ghidra from GitHub releases. After downloading the ZIP file, you can extract it in the destination of choice. I prefer using /opt/ for installations such as this.

After downloading Ghidra and setting it up with the proper Java version (Java 17 is required as of writing), you can download and install the ghidra-emotionengine-reloaded plugin which allows one to load PS2 binaries into Ghidra, demangle symbols for you, fix relocation issues, and other utilities that will benefit in reverse engineering PS2 games.

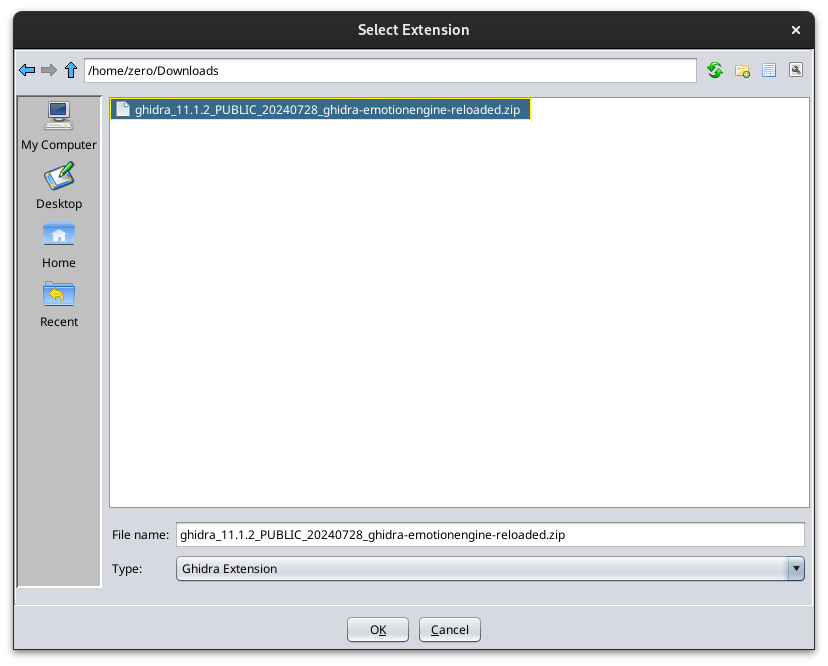

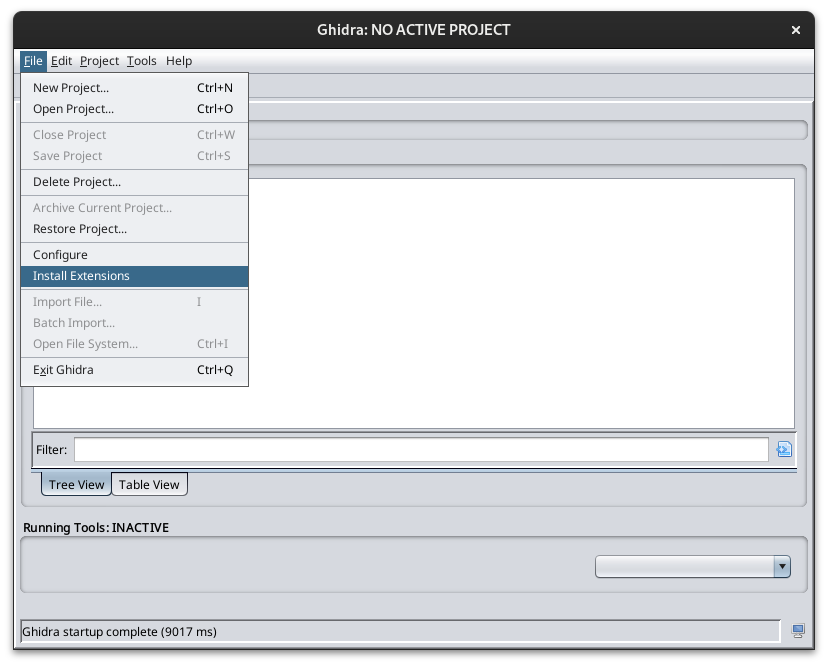

After opening Ghidra, you can install the Ghidra plugin by clicking on File -> Install Extensions -> Add Extension and selecting the extension in the file locator window that opens up.

Here are some pictures to show exactly that:

After following the above steps, you will have the Ghidra Emotion Engine Reloaded plugin installed and ready to go alongside Ghidra and the PS2 toolchain.

In the next tutorial, we will finally begin reverse engineering our test program with Ghidra and identifying commonalities between PS2 executables and how they work in practice.

Foreword

In this tutorial, you learned how to source executables from an ISO rip, identify what compiler was used to build the executable, and install Ghidra with the Ghidra Emotion Engine Reloaded plugin, and are ready to start looking at a binary in Ghidra. In the next few tutorials, we will be setting up a matching decompilation using Splat.

And that is all for this tutorial! Hope to see you in the next.
